flow control valve with ptfe liner 2″

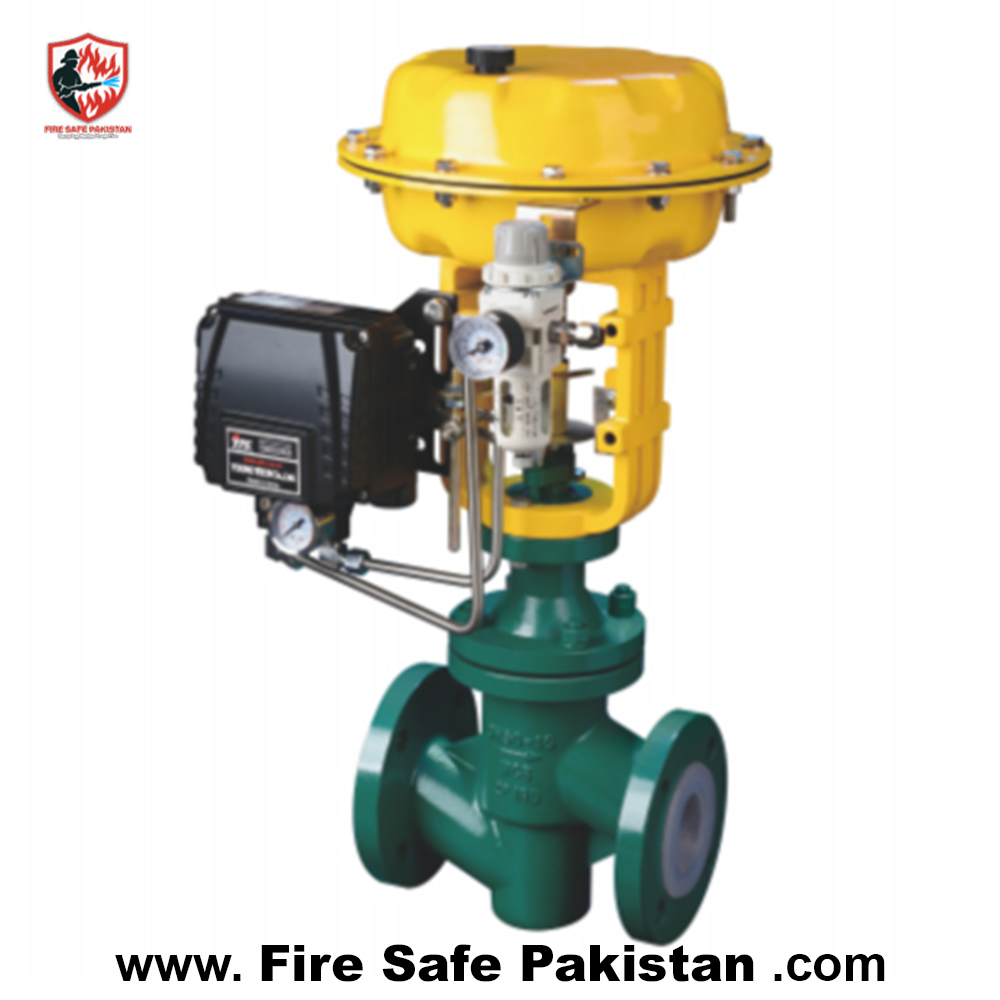

Flow Control Valve with PTFE liner 2″

₨ 390,000

Fire Safe Pakistan is a trusted fire safety items supply business offering complete safety solutions, including PPE, fire extinguishers, hose pipes, hose reels, fire doors, fire alarm systems, and emergency equipment. We ensure quality, compliance, and reliable protection for every site. For expert support and quick orders, contact us on WhatsApp 03244007801.

Flow Control Valve with PTFE liner 2″

  • Body Type: Straight-through casting globe type.
  • Lining Material: Fluoropolymers (PTFE, FEP, PFA).
  • Spool Type: Non-balanced single-seat plug type.
  • Nominal Size: 2″.
  • Nominal Pressure: PN 8-16
  • Connection Type: Flanged (FF, RF, MF, RTJ), Welding (SW, BW).
  • Flange Dimensions: According to IEC 60534 standard.
  • Bonnet Type: Standard type (operating range: -29°C to 150°C).
  • Packing: V-type PTFE packing, flexible graphite packing.
  • Gasket: Metal graphite packing.
  • Actuator Type: Pneumatic multi-spring diaphragm or piston-type actuator.

Flow Control Valve with PTFE Liner 2″ – Fire Safe Pakistan

Overview of Flow Control Valve

The Flow Control Valve with PTFE Liner 2″ is a high-performance valve designed for precise fluid control in chemical, pharmaceutical, and industrial applications across Pakistan. Manufactured with superior materials and advanced engineering, this valve ensures long-lasting durability and safe operation under demanding conditions. At Fire Safe Pakistan, we provide top-quality flow control solutions to ensure safety and efficiency in every industrial setup.

Body and Lining Material

This valve features a straight-through casting globe type body, making it ideal for smooth fluid passage and minimal pressure drop. The internal lining is made from fluoropolymers such as PTFE, FEP, and PFA, providing excellent chemical resistance, preventing corrosion, and ensuring compatibility with aggressive fluids. The PTFE liner also enhances the valve’s longevity, making it a reliable choice for industries in Pakistan where safety and performance are critical.

Spool and Nominal Specifications

Equipped with a non-balanced single-seat plug type spool, this valve ensures accurate flow regulation. The nominal size of 2″ and nominal pressure rating of PN 8-16 allow it to handle medium-pressure systems efficiently. The design ensures precise flow control while minimizing leakage, making it perfect for applications in water treatment, chemical processing, and industrial automation.

Connection Types and Standards

The Flow Control Valve supports multiple connection types, including:

  • Flanged: FF, RF, MF, RTJ

  • Welding: SW, BW

Flange dimensions comply with IEC 60534 standards, ensuring compatibility with international piping systems. This makes installation seamless and reliable for industrial facilities across Pakistan.

Bonnet, Packing, and Gasket Details

The valve features a standard type bonnet suitable for operating temperatures ranging from -29°C to 150°C. It comes with V-type PTFE packing or flexible graphite packing options to prevent leakage and ensure smooth operation. Additionally, the metal graphite gasket provides extra sealing protection under high-temperature and high-pressure conditions.

Actuator Options

For automated control, the valve can be fitted with a pneumatic multi-spring diaphragm actuator or a piston-type actuator, providing precise flow modulation. This makes it ideal for integration into modern industrial systems where automation and safety are essential.

Why Choose Fire Safe Pakistan?

At Fire Safe Pakistan, we prioritize quality, safety, and reliability. Our flow control valves are tested to meet international standards, ensuring optimal performance in demanding industrial environments. By choosing our Flow Control Valve with PTFE Liner, you are investing in durability, efficiency, and peace of mind for your industrial operations.
