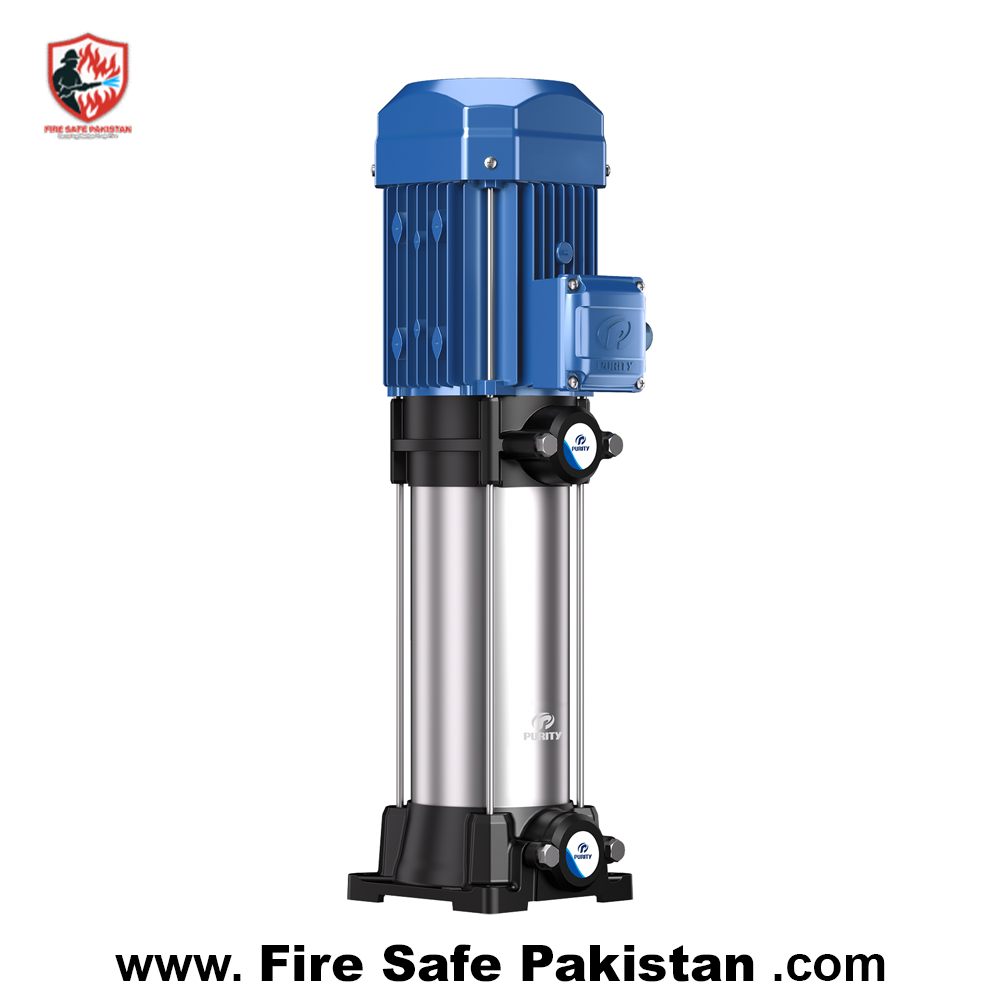

Jockey Pump (China)
- Brand New China
- Origin: Manufactured in China.
- Pump Type: 10-15 stage multi-stage centrifugal pump.
- Body Material: Constructed from complete stainless steel (SS 304) for durability and corrosion resistance.
- Motor: 7.5 HP, 2900 RPM, AC motor, 3-phase power supply.
- Discharge Pressure: Range of 134–114 meters (m).
- Discharge Flow Rate: 10–12 cubic meters per hour (m³/hr).
- Connection Size: Inlet/Outlet size of 40 mm (DN).
- Application: Typically used for pressurization or boosting in fire protection or water supply systems.
- Efficiency: Designed for high efficiency and reliable operation.
- Compliance: Conforms to international standards for safety and performance.
Jockey Pump China – High Pressure Fire Pump for Fire Protection Systems in Pakistan
The Jockey Pump (China) is a critical component of modern fire protection systems, designed to maintain consistent pressure in fire sprinkler and hydrant networks. Fire Safe Pakistan supplies brand new, high-quality China-origin jockey pumps engineered for durability, efficiency, and reliable performance in commercial, industrial, and residential fire safety installations across Pakistan.
Manufactured using premium materials and advanced centrifugal pump technology, this jockey pump ensures that fire systems remain pressurized and ready for immediate operation when required.
Reliable China-Origin Jockey Pump for Fire Fighting Systems
This jockey pump is manufactured in China under strict quality control standards and conforms to international safety and performance requirements. It is widely used in fire protection systems to prevent pressure drops, reduce wear on main fire pumps, and ensure system readiness at all times.
Fire Safe Pakistan recommends this model for projects requiring stable pressure control, energy efficiency, and long service life.
Multi-Stage Centrifugal Pump Design
The pump features a 10–15 stage multi-stage centrifugal design, allowing it to generate high pressure while maintaining smooth and continuous water flow. This design makes it ideal for high-rise buildings, industrial plants, warehouses, hospitals, and commercial complexes where reliable pressure maintenance is essential.
The multi-stage configuration improves operational efficiency and minimizes vibration, ensuring quiet and stable performance.
Stainless Steel Body for Corrosion Resistance
The pump body is constructed from complete stainless steel SS 304, providing excellent resistance against corrosion, rust, and chemical exposure. This makes the jockey pump suitable for long-term use in demanding environments, including humid conditions commonly found in Pakistan.
The stainless steel construction also enhances durability and reduces maintenance requirements over time.
High-Performance Motor Specifications
Equipped with a 7.5 HP AC motor, this jockey pump operates at 2900 RPM and supports a 3-phase power supply. The motor is designed for continuous operation, delivering consistent output while maintaining energy efficiency.
This powerful motor ensures dependable performance even during extended operational cycles in fire protection systems.
Discharge Pressure and Flow Capacity
The jockey pump delivers a high discharge pressure ranging from 114 to 134 meters, making it suitable for maintaining pressure in high-rise and large-scale fire systems.
It offers a discharge flow rate of 10–12 m³ per hour, providing optimal balance between pressure and water volume. This performance range ensures system stability without overloading the main fire pump.
Standard Connection Size for Easy Installation
The pump comes with a 40 mm (DN) inlet and outlet connection, allowing seamless integration with standard fire piping systems. This connection size simplifies installation and reduces the need for additional fittings or modifications.
Fire Safe Pakistan ensures compatibility with commonly used fire fighting infrastructure in Pakistan.
Applications in Fire Protection and Water Boosting
This jockey pump is primarily used for:
-
Fire sprinkler systems
-
Fire hydrant networks
-
Fire pump rooms
-
Water pressure boosting systems
-
Commercial and industrial fire safety installations
Its main function is to maintain line pressure and prevent unnecessary activation of the main fire pump, increasing system efficiency and lifespan.
High Efficiency and Reliable Operation
Designed for high efficiency and dependable operation, this jockey pump reduces energy consumption while delivering stable pressure control. Its precision engineering ensures minimal wear and long operational life, making it a cost-effective solution for fire protection systems.
Fire Safe Pakistan supplies only tested and verified pumps to meet the safety demands of modern fire fighting systems.
Compliance with International Safety Standards
The jockey pump complies with international standards for safety, performance, and reliability, ensuring it meets the requirements of professional fire protection projects. This compliance makes it suitable for use in regulated environments and large-scale developments across Pakistan.
Why Buy Jockey Pump from Fire Safe Pakistan
Fire Safe Pakistan is a trusted supplier of fire fighting equipment in Pakistan, offering:
-
Genuine China-origin jockey pumps
-
Quality-assured fire safety products
-
Expert guidance for fire protection systems
-
Reliable solutions for commercial and industrial projects
Our focus is to provide dependable fire safety equipment that meets international standards while remaining suitable for local conditions.
